Fuel-powered UAV engines place rotating components under repeated mechanical and thermal load. When a crankshaft journal is incorrectly positioned, distorted after heat treatment, or finished from the wrong datum, the problem can spread through the bearings, connecting rod, piston, cylinder, output interface, and eventually the airframe.
For procurement teams, selecting a qualified UAV engine crankshaft manufacturer is therefore not simply a question of finding the smallest advertised tolerance. The supplier should be able to explain how the shaft will be machined, which datums control the journals, what material and heat-treatment information is required, and how the finished component will be inspected before shipment.

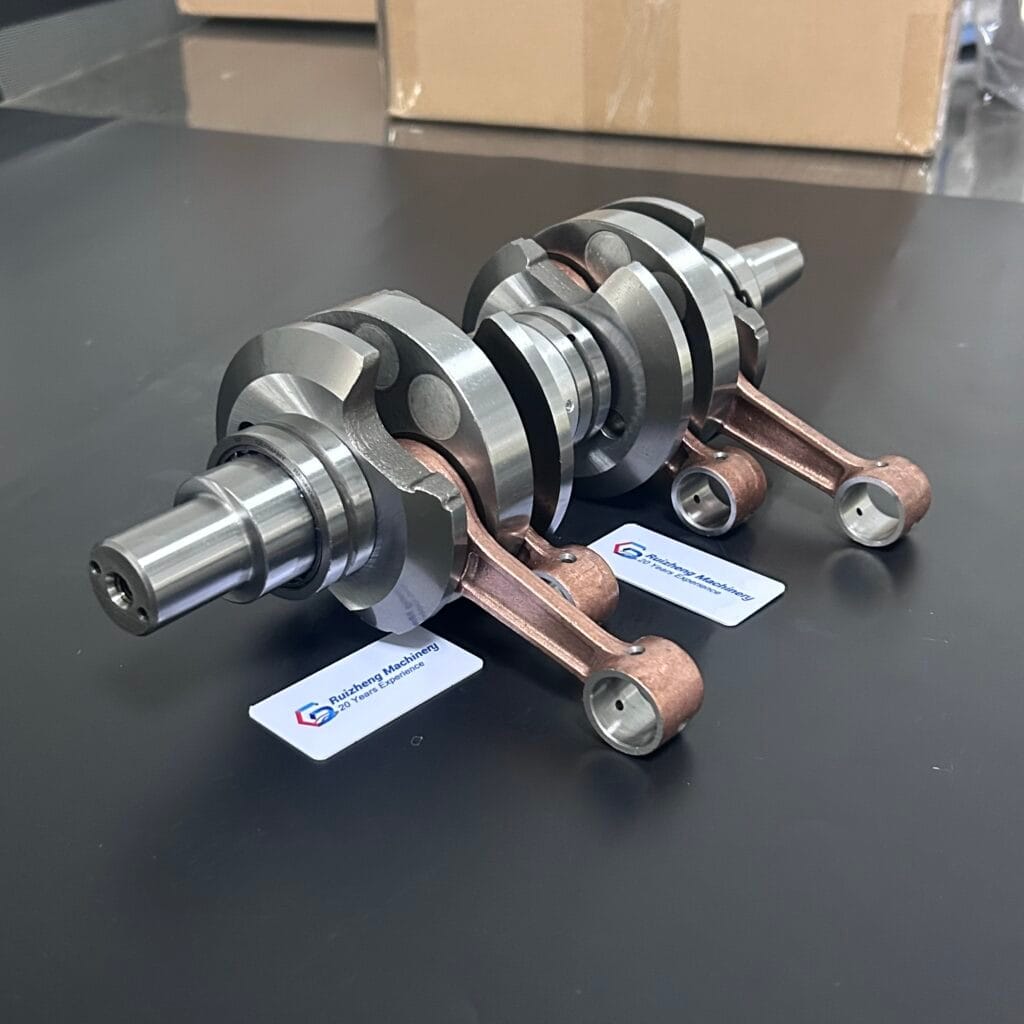

Founded in 2013, Ruizheng specializes in high-precision shaft components and non-standard mechanical parts. Its documented machining capability can reach 0.001 mm, supported by CNC turning, milling, grinding, heat-treatment support, first-piece inspection, in-process inspection, final inspection, and a constant-temperature inspection room.
Why Is Sourcing Quality UAV Engine Crankshafts a High-Stakes Decision?
A UAV powertrain has limited tolerance for recurring vibration and unexpected mechanical failure. The crankshaft is particularly important because its geometry influences several surrounding engine components at the same time.
Severe Vibration and In-Flight Powertrain Risks
A journal can have the correct nominal diameter while still being positioned incorrectly relative to the intended rotation axis.
As rotational speed increases, this geometric error can create repeated radial loading and transmit vibration through the engine assembly. The effect may appear at the bearings, mounts, propeller interface, fuel-system supports, wiring, and airframe structure.
A supplier audit should therefore look beyond journal diameter and examine runout, datum relationships, crankpin position, and the output-end geometry defined on the drawing.
Bearing and Piston Wear from Geometric Error
Bearing wear may not originate from the bearing itself.
If a crankpin or main journal is not correctly aligned, load can become concentrated over part of the bearing surface. The connecting rod may also follow an incorrect path, increasing piston side load and cylinder wear.
This is why journal inspection, connecting rod geometry, piston-pin position, and cylinder alignment should be considered together when investigating a failed UAV engine.
High Cost of Unplanned Failure and Rework
Poor crankshaft geometry can result in:
rejected engine assemblies;
repeated bearing replacement;
piston or cylinder damage;
additional balancing attempts that do not solve a geometric problem;
field maintenance;
engine teardown;
delayed UAV testing.
For procurement teams, supplier quality should therefore be evaluated against total failure and rework risk rather than purchase price alone.
What Precision Tolerance Questions Must Procurement Teams Ask?
A competent UAV engine crankshaft manufacturer should be able to discuss the drawing in terms of functional geometry, material condition, inspection method, and production sequence.
Five Essential QC Questions Before Ordering
1. Which datums control the main journals, crankpins, and output end?
The drawing should identify the functional reference axis and locating faces. If different setups use unrelated references, geometric error can accumulate even when individual diameters remain within size tolerance.
2. How will runout and journal relationships be inspected?
Ask where each measurement will be taken, how the shaft will be supported, and which results can be included in the dimensional inspection report.
3. How are material and heat-treatment requirements controlled?
The supplier should confirm the customer-specified material grade, heat-treatment condition, and required hardness when applicable.
4. What happens if heat treatment changes shaft geometry?
The process route should leave enough allowance for final correction of critical journals when heat treatment or stress relief may affect straightness, roundness, or runout.
5. Can the supplier support first-piece and trial-batch verification?
A prototype or small batch gives the buyer an opportunity to check assembly fit and engine performance before committing to volume production.
These questions provide more useful evidence than asking whether the supplier can meet one universal crankshaft tolerance.
Drawing-Based Dimensional Control and 0.001 mm Machining Capability
Ruizheng’s documented machining accuracy can reach 0.001 mm.
This figure should be treated as a supplier capability rather than a universal UAV crankshaft specification. Actual journal size, runout, concentricity, position, and surface requirements must follow the approved customer drawing.
The inspection plan should also identify:
measurement positions;
datum journals;
crankpin references;
axial locating faces;
output-end features;
instrument and reporting requirements.
A constant-temperature inspection room can help reduce measurement variation when evaluating high-precision shaft geometry.
Runout and Concentricity for High-Speed Operation
A crankshaft that meets its journal diameter tolerance can still create vibration if those journals do not share the required rotational relationship.
For this reason, the buyer should define the permitted runout and relevant geometric tolerances instead of relying on diameter alone.
If the engine design also has a separate balancing requirement, that requirement should be documented independently. Balancing should not be used as a substitute for correcting an incorrectly machined or distorted journal.
Material and Heat-Treatment Requirements
Ruizheng works with alloy steel, stainless steel, titanium alloy, and customer-specified materials across precision machining projects and can support heat treatment when required.
For a UAV engine crankshaft, procurement teams should provide:
material grade;
heat-treatment condition;
required hardness where applicable;
critical journal requirements;
required material or dimensional reports.
The correct values depend on the engine design. One alloy grade or hardness range should not be treated as universal for every UAV crankshaft.
What Should a UAV Crankshaft Inspection Package Include?
A useful quality package should allow the buyer to compare the finished shaft directly with the approved drawing.
Critical Journal and Datum Inspection
The inspection plan should identify the reference journals, crankpins, output end, and axial locating faces.
For each critical feature, define:
nominal dimension;
tolerance;
geometric control;
datum reference;
measurement position.
This prevents a situation where each journal passes an isolated diameter check but the complete crankshaft still fails during rotation.
Material and Heat-Treatment Records
When the project requires documentation, the purchasing specification should state which records must accompany the parts.
Depending on the project, these may include:
material reports;
dimensional inspection reports;
hardness results where heat treatment is specified;
RoHS-related documentation;
other customer-required certificates.
These requirements should be agreed before production rather than requested after the batch has already been completed.
First-Piece, In-Process, and Final Inspection
Ruizheng applies first-piece inspection, in-process checking, and final inspection before shipment.
For critical UAV crankshaft projects, the buyer should identify which dimensions must appear on the first-piece and final reports. This may include main-journal dimensions, crankpin relationships, runout locations, and critical locating faces.
The inspection plan should match the drawing’s datum system so that manufacturing and final verification evaluate the same functional geometry.
Why Partner with Ruizheng as Your UAV Engine Crankshaft Manufacturer?
Supplier selection should combine machining capability with a clear quality process and responsive project communication.
ISO 9001 Quality Management and SGS Documentation
Ruizheng operates under an ISO 9001 quality management system and has obtained SGS testing documentation.
Its quality workflow includes first-piece, in-process, and final inspection, while a constant-temperature inspection room supports stable dimensional verification.
Products can be manufactured according to applicable customer and market quality requirements, and material reports, dimensional inspection reports, and RoHS-related documentation can be supplied when required.
24-Hour Drawing Evaluation and Flexible Prototyping
Ruizheng supports customization based on customer 2D and 3D drawings.
Drawing evaluation and quotation can typically be completed within 24 hours. Small-batch proofing and trial production are also supported before volume manufacturing.
Typical company lead-time references are:
20–30 days for ordinary parts;
40–60 days for high-end precision parts.
Final delivery timing depends on project complexity and production confirmation.
International Project and Logistics Support
Ruizheng serves customers in Europe, the United States, Japan, Southeast Asia, and other markets.
International express, air, and sea transportation can be arranged. DDP service is available when required rather than being treated as the only delivery term.
The company can also provide Chinese and English packing lists, invoices, certificates of origin, and related export documents according to customer requirements.
How Can Procurement Managers Verify a Supplier Before Volume Ordering?
A reliable sourcing process moves from drawing review to trial verification and then to full production.
Submit Complete 2D and 3D CAD Files
A useful technical package should include:
crankshaft drawing;
available 3D model;
material;
heat treatment;
journal dimensions;
crankpin position;
output connection;
critical datums;
operating conditions;
trial and batch quantities;
requested inspection reports.
This gives the supplier enough information to review manufacturability and inspection before quoting.
Order a Trial Batch for Engine Verification
A redesigned, reverse-engineered, or newly sourced UAV crankshaft should ideally be validated before a large production commitment.
Trial parts can be used to check:
bearing fit;
crankshaft rotation;
engine vibration;
connecting rod movement;
output-end fit;
thermal behavior during engine testing.
If a problem appears, the drawing and process route can be reviewed before full production.
Confirm Inspection Requirements Before the Purchase Order
Before approving production, both parties should agree on the acceptance criteria.
The purchasing record should identify the critical dimensions, datums, inspection positions, required reports, material condition, and any engine-specific requirements.
This provides a clear standard for first-piece approval and final shipment.
Final Supplier Selection Decision
A qualified UAV engine crankshaft manufacturer should not simply promise the smallest possible number.
The more important evidence is whether the supplier can explain:
how the crankshaft will be referenced during machining;
which journals require final grinding;
how heat-treatment movement will be considered;
how runout and related geometry will be inspected;
which reports can accompany the parts;
whether trial production can be completed before volume ordering.
Ruizheng’s documented machining capability can reach 0.001 mm, but the actual UAV crankshaft tolerance must always be defined by the engine drawing and operating requirements.
For procurement teams, a drawing-based process review, first-piece inspection, and trial-batch engine test provide a much stronger basis for supplier approval than an unsupported universal tolerance claim.
FAQ
How should procurement teams audit a potential UAV engine crankshaft manufacturer before ordering?
Check whether the supplier can review the 2D/3D drawing, identify critical datums, explain the machining and heat-treatment route, provide first-piece and final dimensional inspection, and support trial production. Ruizheng also operates under an ISO 9001 quality management system and uses a constant-temperature inspection room for precision measurement.
What tolerance applies to precision crankshaft journals for UAV engines?
There is no universal runout or journal tolerance for every UAV engine. The required value depends on engine speed, bearing design, journal arrangement, shaft geometry, load, and operating conditions. Ruizheng’s documented machining capability can reach 0.001 mm, but the final acceptance limits should follow the approved customer drawing.
What material and heat-treatment documents should a crankshaft supplier provide?
The required documents depend on the project. Buyers should specify the material grade, heat-treatment condition, required hardness where applicable, and the reports needed with shipment. Ruizheng can provide material reports, dimensional inspection reports, and other project-related documentation when required.
