During long-endurance missions for industrial fuel-powered drones, engine failure is not an option. A minor drop in compression at altitude triggers sudden thrust degradation, excessive vibration, or complete engine seizure. Performing rigorous UAV Engine Cylinder Inspection safeguards operational integrity, ensuring critical flight hardware withstands continuous thermal and mechanical stress. When engines operate at 8,000 to 10,000+ RPM for hours, sub-micron geometric precision separates a successful mission from a catastrophic mid-air loss. Systematic uav engine cylinder inspection ensures every combustion component delivers sustained reliability.
Why Does Minor Cylinder Geometry Deviation Cause Sudden UAV Power Loss?
Operating two-stroke and four-stroke fuel UAV engines generates severe thermal gradients across the combustion chamber. When cylinder geometry deviates slightly from nominal CAD specifications, dynamic flight conditions quickly turn micro-imperfections into severe mechanical failures. Industrial drone operators frequently trace sudden altitude drops and engine overheating directly to geometry errors inside the barrel.
| Inspection Parameter | Geometric Failure Mode | Flight Operational Impact |
| Bore Roundness (Ovality) | Combustion gas blow-by | 15–25% drop in cruising thrust |
| Taper & Barrel Shape | Piston ring scuffing / sticking | Severe cylinder wall scoring |
| Coating Micro-Hardness | Flaking under peak combustion heat | Rapid abrasive seizure at high RPM |
Out-of-Roundness Induced High-Temperature Blow-By
High combustion pressure pushes expanding gases against the piston crown during each power stroke. If a cylinder suffers from cylinder bore out of roundness, the piston rings cannot maintain continuous 360-degree radial contact against the cylinder wall. Pressurized combustion gases immediately bypass the ring pack into the crankcase, creating blow-by that lowers dynamic compression, raises crankcase pressure, and causes sudden thrust loss during climb or cruise phases.
Piston Ring Scuffing and Premature Compression Failure
When a UAV engine cylinder is subjected to elevated cylinder head temperatures, localized bore constrictions remove the thin layer of oil required for the piston’s movement. The piston’s ring then makes solid metal-to-metal contact with the cylinder wall, leading to micro-welding and increased friction. The resulting scuff marks can rapidly develop into deep vertical grooves which can lead to ring sticking due to loss of gas seal. Such micro-wear can be identified by regular UAV engine cylinder inspections prior to engine assembly.
Uneven Thermal Expansion Under Sustained High RPM
Air-cooled and liquid-cooled industrial drone cylinders expand non-uniformly around exhaust ports and cooling fins. If pre-machined internal geometries fail to account for these thermal profiles, the bore distorts into an irregular oval during continuous operation. Maintaining fuel uav engine reliability requires cylinders manufactured with precise pre-stressed tolerances that seat true once operating temperatures stabilize, preventing hot-spot bore distortion.
How Do Precision Measurement Protocols Verify Bore Size and Roundness?
Precision engine manufacturing requires specialized metrology protocols to eliminate measurement uncertainty. Standard shop-floor calipers and manual micrometers cannot capture the multi-dimensional form deviations that impact flight performance. Establishing robust precision CNC part inspection protocols ensures that every cylinder barrel matches strict aerospace-grade aerodynamic and mechanical standards before assembly.
At Ruizheng, advanced CNC turning, multi-axis milling, precision cylindrical grinding, and high-standard quality control come together under one roof. Operating over 50 sets of advanced CNC machining equipment and a dedicated climate-controlled quality laboratory, Ruizheng specializes in custom high-precision engine components, transmission shafts, and non-standard mechanical parts engineered for mission-critical industrial applications. Every stage of manufacturing follows strict dimensional checkpoints to maintain complete structural integrity.
Multi-Point Scanning in Constant-Temperature Chambers
Temperature shifts introduce thermal expansion errors that skew micron-level readings. Conducting constant temperature cmm inspection in a dedicated testing room stabilized at 20°C ± 0.5°C eliminates environmental measuring drift. High-resolution coordinate measuring machines capture multi-plane cross-sections, scanning coordinate points from top dead center down through the entire piston stroke to map the complete 3D inner profile.
Sub-Micron Cylindricity and Runout Verification
Quality engineers inspect internal bore dimensions using pneumatic bore gauges and dedicated roundness measuring equipment. For precision cylinder sleeve tolerances, bore diameter tolerances are strictly held within ±0.001 mm to 0.002 mm, with roundness variations controlled under 0.002 mm. Systematic uav engine cylinder inspection identifies taper, barrel shape, and hourglass distortions across high-stress zones before parts reach the engine assembly line.
Cross-Hatch Angle and Surface Finish Profiling
Honing the plateau pattern into the cylinder walls creates microscopic cross-hatching to hold lubricating oil without increasing friction. Surface roughness testing of the internal bore of the cylinder wall, honed to the correct plateau pattern, shows a consistent surface roughness of Ra 0.1 to 0.4 μm. The depth of the valleys holds the oil during high speed full throttle running, whilst the smooth peaks of the plateau support the piston rings to prevent boundary lubrication failure.
What Coating Inspection Standards Ensure UAV Cylinder Durability?
Internal cylinder surfaces of lightweight industrial engines for UAVs are coated with special wear-resistant coatings. These can be nickel-silicon-carbide coated by electroplating or even be made of advanced ceramic thermal barriers. Regular checks on uav engine cylinders in service are carried out to check the mechanical properties of these coatings and to assess wear and check for any lack of structural endurance.
| Coating Quality Test | Target Inspection Value | Primary Engineering Protection |
| Thickness Uniformity | Uniform across stroke depth | Prevents localized overheating |
| Surface Hardness | 58–62 HRC (equivalent HV) | Resists micro-abrasion from carbon |
| Scratch/Adhesion Test | Zero delamination or micro-peel | Eliminates mid-air abrasive scoring |
Coating Thickness Uniformity Across Full Stroke Depth
Using non-destructive eddy-current and magnetic thickness gauges to check the plating thickness on the top deck, skirt, etc. ensures that any irregular plating is located in specific areas of the cylinder. This creates local hot spots as well as areas with uneven piston clearance, leading to wear bands. Measuring and then setting the plating thickness to a constant figure allows for equal heat distribution through the cylinder barrel to the cooling fins, ensuring the structural integrity of the component under constant thermal load.
Micro-Hardness and Thermal Shock Resistance
Surface hardness testing verifies that heat-treated internal surfaces and plated coatings maintain 58 to 62 HRC. This high surface hardness resists micro-abrasion caused by fuel additives and hard carbon particles. Thermal cycle stress testing further validates that coatings expand and contract in sync with the parent metal during rapid throttle transitions, preventing microscopic thermal cracking.
Bond Strength Verification to Prevent Delamination
Evaluating uav cylinder coating adhesion ensures that plating mechanically locks into the underlying substrate alloy. Poor adhesion causes localized micro-flaking under heavy combustion loads. When hard flakes detach and enter the clearance gap, they score the piston skirt and trigger instantaneous loss of power. Comprehensive uav engine cylinder inspection verifies bond integrity across full operational thermal ranges.
How Do Custom UAV Engine Components Optimize Flight Endurance?
A high-performance UAV powertrain functions as an integrated mechanical assembly. Even a perfectly round cylinder bore cannot deliver peak efficiency if adjacent components introduce excessive vibration or dynamic imbalance. Sourcing matched engine parts from specialized precision manufacturers ensures balanced operational dynamics during long-range flights.
Integrating dynamic balancing with roundness-verified cylinder sleeves eliminates side-load friction and destructive lateral piston slap. By matching metallurgical expansion coefficients between the barrel and the piston assembly, engines maintain optimal compression ratios throughout extended operational profiles. This mechanical harmony reduces internal friction, extending engine overhaul intervals.
Custom UAV Engine Cylinder Sleeves for Thermal Stability

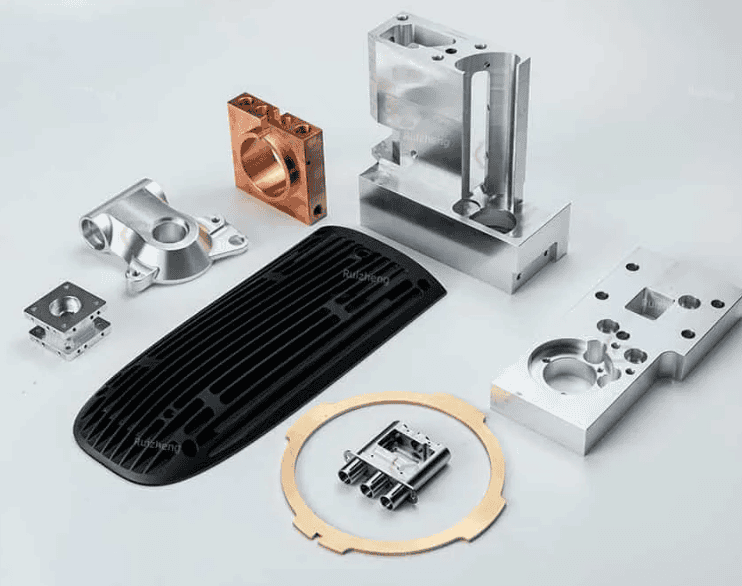

Sourcing specialized precision UAV engine parts ensures exceptional dimensional stability under high continuous loads. Precision CNC turning, deep-hole boring, and cylindrical grinding maintain tight tolerances across diverse engine displacements. Advanced metallurgy optimizes heat conductivity while minimizing system weight for extended flight range. For further details, see How We Manufacture Custom Crankshafts: From Material Selection to Precision Machining.
Dynamic Synergy Between Cylinder Bores and Balanced Crankshafts
Pairing precision cylinder sleeves with dynamically balanced crankshafts eliminates destructive lateral piston slap. High-speed dynamic balancing up to ISO 1940 G1.0 and G2.5 standards for 10,000+ RPM operation minimizes rotational vibration. Balanced rotating assemblies reduce side-load wear on cylinder walls, safeguarding fuel uav engine reliability over hundreds of flight hours.
Batch Consistency and Flawless Tolerance Matching
Mass-producing UAV powerplants demands identical dimensions from part to part. Maintaining a 99.5%+ pass rate supported by 100% dimensional verification eliminates assembly line sorting delays. Standardized tolerances allow seamless component replacement during scheduled field overhauls without requiring custom hand-fitting. Factory-level uav engine cylinder inspection guarantees component interchangeability across production batches.
Why Partner With Ruizheng for High-Precision UAV Machining Services?
As demands for higher power to weight, lower fuel consumption and zero field failures continue to increase, manufacturers of engines look for a production partner who can deliver CNC machining of the highest quality, combined with comprehensive quality verification.
Full-Spectrum CNC Machining and Precision Grinding
The capability to access specialist precision machining services can enable engineering to manufacture components such as cylinder sleeves, step shafts, valve cores and dynamic crankshafts as a single project. In-house CNC turning, milling and grinding enables the project to maintain extremely tight tolerances down to 0.001 mm and consistent surface finish in line with typical aerospace specification.
Certified Quality Assurance With Complete CMM and Material Reports
Traceability of processes within our ISO 9001:2015 certified quality management systems. All production batches are equipped with certified documentation for used raw materials (SGS/RoHS) as well as with measuring reports for all coordinates. In detail, before dispatch of our uav engine cylinders, these are 100% inspected against approved 2D and 3D CAD data.
Rapid 24-Hour Drawing Evaluation and Prototyping
Experienced manufacturing engineers evaluate custom CAD models, offering practical Design for Manufacturability (DFM) guidance within 24 hours. Fast-track prototyping delivers functional sample components in 3 to 7 days for dyno bench testing. Reliable DDP door-to-door global logistics ensure timely delivery for North American and European OEM supply chains.
When cylinder out-of-roundness, excessive ring friction, or thermal distortions threaten your engine endurance, specialized engineering review provides direct clarity. For technical evaluation of your UAV cylinder tolerances, shaft components, or custom machining drawings, please contact our engineering team to review your CAD files and discuss project specifications.
FAQ
How often should fuel UAV engine cylinders undergo dimensional inspection?
Fuel UAV cylinders should undergo comprehensive dimensional checks during initial incoming quality control prior to assembly, as well as during scheduled top-end overhauls—typically every 50 to 100 flight hours depending on engine displacement and operating altitude. Checking for cylinder bore out of roundness and taper during routine maintenance prevents mid-mission compression drop.
What is the maximum acceptable bore roundness tolerance for high-performance UAV engines?
For high-RPM industrial fuel UAV engines, bore out-of-roundness must not exceed 0.002 mm to 0.003 mm. Exceeding this threshold breaks the dynamic seal of the piston rings, allowing blow-by gases to escape and causing loss of power during flight. Maintaining precision cylinder sleeve tolerances through regular uav engine cylinder inspection ensures consistent gas sealing across all throttle ranges.
Why does cylinder coating peel during long-endurance fuel UAV flights?
Coating flaking usually stems from inadequate substrate cleaning, improper electroplating current densities, or thermal expansion mismatches between the coating and the base metal. Thorough uav cylinder coating adhesion testing and constant temperature cmm inspection during production prevent delamination under continuous high-temperature operating conditions.
