A Precision Machining Supplier can manage turning, milling, and grinding for the same part, but the value is not simply having three machine types. Buyers gain more when one team controls datums, machining allowances, inspection points, and final responsibility. This reduces repeated setup, outside coordination, and fit disputes.
Ruizheng processes custom shafts and non-standard parts for machine tools, industrial equipment, engines, and fuel-powered industrial UAVs. Typical parts include crankshafts, camshafts, covers, pistons, connecting rods, spindle components, flanges, and bearing seats. Its production route can combine turning, milling, grinding, heat-treatment support, and staged inspection.
Why Do Buyers Combine Turning, Milling, and Grinding with One Supplier?
Each factory transfer creates another setup and another datum interpretation.
Fewer Datum Transfers between Processes
Turning establishes the main axis. Milling adds holes, slots, flats, and mounting features. Grinding finishes selected fits and running surfaces.
Integrated turning milling and grinding helps one team protect the same references from rough machining to final measurement.
Clear Responsibility for Final Tolerance
With separate suppliers, a buyer may need to determine whether a problem came from turning stock, heat-treatment movement, milling position, or grinding allowance.
One Precision Machining Supplier can review the complete drawing and accept responsibility for the finished relationship between features. This matters for crankshafts, camshafts, and connecting rods, where one displaced feature can affect motion or assembly.
Stable Scheduling from Prototype to Batch Production
Ruizheng supports samples and small trial batches. Its stated lead time is normally 20–30 days for ordinary parts and 40–60 days for more demanding precision parts, depending on the process route.
For small batch precision machining, keeping the main operations together also makes the approved method easier to repeat.
What Does Each Machining Process Contribute to the Final Part?
The three processes are complementary. A capable supplier assigns them according to function instead of applying the tightest process to every surface.
Turning Builds the Main Rotational Geometry
Turning forms shaft diameters, shoulders, grooves, threads, tapers, piston profiles, and other round features. It is often the starting operation for crankshafts, camshafts, spindle parts, and engine components.
The process must leave enough material for heat treatment or final grinding.
CNC Milling Creates Complex External Features
CNC Milling Services are suited to keyways, oil passages, bolt holes, pockets, flats, and mounting faces.
CNC milling for non-standard parts is relevant to engine covers, bearing seats, flanges, connecting features, and industrial UAV engine parts machining. The main check is the feature’s position relative to the shaft axis or assembly datum.

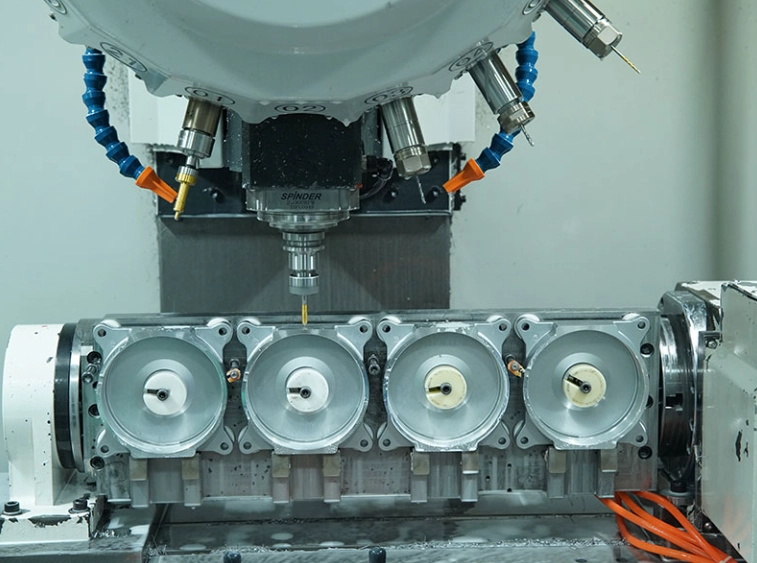

Precision Grinding Controls Critical Fits and Running Surfaces
Precision Grinding Services are normally reserved for bearing journals, sealing positions, locating diameters, and surfaces that directly affect runout or rotational fit. Ruizheng states a grinding tolerance of ±0.001 mm for suitable parts. For precision-ground stepped shafts, its published surface-finish references include Ra ≤0.8 μm, while selected step-shaft and eccentric-shaft process routes can reach Ra 0.1 under suitable geometry and machining conditions.
These figures should not be copied across the whole drawing. A bearing journal or seal contact area may need a lower Ra value, while a non-contact shoulder may only require a controlled turned finish. Applying grinding to every surface increases processing time without necessarily improving assembly performance.
For each critical ground surface, buyers should define:
- Diameter tolerance
- Roundness and cylindricity
- Concentricity or runout relative to the main datum
- Required Ra value
- Grinding position after heat treatment
- Measurement direction and inspection method
This gives the Precision Machining Supplier a functional target instead of a general request for a “smooth surface.”
Material, Heat Treatment, and Compliance Records
Material selection should begin with the operating load, wear position, corrosion exposure, and heat-treatment route. Ruizheng’s published material options for shaft work include 45# or AISI 1045 for general mechanical shafts, 40Cr or AISI 4140 for heat-treated components exposed to higher loads, 304 or 316 stainless steel for corrosion-sensitive environments, and GCr15 for precision shafts that require stronger wear resistance.
For crankshafts, camshafts, connecting rods, pistons, and fuel-powered industrial UAV engine parts, the purchase drawing should not state only “alloy steel.” It should specify:
- Exact material grade and delivery condition
- Quenching, tempering, nitriding, or surface-hardening requirements
- Target hardness range in HRC, HV, or another agreed scale
- Effective hardened depth where surface treatment is used
- Areas that must retain core toughness
- Whether final grinding takes place after heat treatment
There is no single hardness value suitable for every engine component. A crankshaft journal, cam lobe, connecting rod body, and engine cover carry different loads and failure risks. The hardness target must therefore come from the component design and service conditions.
Heat treatment may also release residual stress and change diameter, straightness, or concentricity. The process plan should leave a controlled grinding allowance before treatment, check deformation afterward, and then finish the critical surfaces to their final dimensions.
Buyers can request material certificates, dimensional inspection reports, and hardness test records with the approved samples. The report should identify the test scale, test location, measured values, and acceptance range so that hardness verification is tied to the drawing rather than a general material description.
Which Parts Benefit Most from an Integrated Process Route?
The strongest case appears when one component combines rotational geometry, side features, and close final fits.
Spindle and Shaft Parts for High-Speed Rotation
Spindle parts, crankshafts, and camshafts may need turned bodies, milled connection features, and ground running surfaces. Buyers should mark bearing positions, seal areas, and assembly references before requesting prices.
Custom shaft machining services are more useful when the supplier can explain which dimensions should share a setup and which surfaces should be finished after heat treatment.
Flanges and Bearing Seats with Mixed Features
Flanges and bearing seats may combine a turned bore, milled face, bolt pattern, and precision locating surface. Their functional relationship matters more than one isolated dimension.
One route also allows the bore or datum face to be checked before and after later operations.
Engine and Industrial UAV Parts with Non-Standard Geometry
Fuel-powered industrial UAV engines place compact parts under vibration and repeated loading. Crankshafts, camshafts, pistons, connecting rods, and covers may require different operations within the same assembly.
A Precision Machining Supplier should review these parts as a group where possible. Common datums, matching fits, and consistent records can reduce assembly problems.
How Can Buyers Verify That One Supplier Controls All Three Processes?
A machine list does not prove control. Buyers should check drawing review, process order, inspection, and documentation.
Drawing Review and Process Planning before Quotation
Before pricing, confirm:
- Functional datums and critical dimensions
- Features affected by heat treatment
- Turning and grinding allowances
- Surfaces that require grinding
- Inspection reports needed for approval
Ruizheng works from 2D and 3D drawings and can provide assembly-tolerance suggestions.
First-Piece, In-Process, and Final Inspection
Ruizheng applies first-piece inspection, in-process inspection, and final inspection before shipment. It also uses a constant-temperature inspection room to support measurement consistency.
For a Precision Machining Supplier, intermediate checks prevent an incorrect feature from continuing into later operations.
Material, Heat Treatment, and Compliance Records
Ruizheng works with alloy steel and stainless steel and supports heat treatment. Buyers may request material reports, dimensional inspection reports, RoHS documents, and related records where required.
Purchase documents should state material grade, hardness, heat-treatment stage, critical dimensions, and required inspection output.
How Should Buyers Start a Turning, Milling, and Grinding Project with Ruizheng?
A complete RFQ helps the supplier choose a practical route and prevents unnecessary tolerance costs.
Match Each Drawing Feature to the Correct Process
Use turning for the round form, milling for non-rotational features, and grinding for selected final fits. Mark the rotating axis, bearing areas, seal positions, mounting features, and assembly datums.
Confirm the Prototype and Batch Requirements
State the sample quantity, expected batch size, approval dimensions, and records needed with the samples. For small batch precision machining, confirm whether the same datum plan and inspection method will be retained.
Review the Service Route and Send the Project Information
Review Ruizheng’s service capabilities and prepare the drawing, material, quantity, heat treatment, tolerances, surface requirements, and inspection needs.
For parts involving several operations, use the contact channel to explain the assembly issue as well as the drawing. A Precision Machining Supplier can plan more accurately when it knows which fit, motion, or failure risk matters most.
FAQ
Q: Can a Precision Machining Supplier complete turning, milling, and grinding for the same part?
A. Yes, provided it controls datums, machining allowances, process order, and inspection between operations. Ruizheng supports these processes for custom shafts and non-standard industrial parts.
Q: Does every engine shaft need precision grinding?
A. No. Grinding is normally reserved for bearing journals, seal positions, locating diameters, and other functional surfaces. Other areas may remain turned when the drawing and operating conditions allow it.
Q: What should I send before requesting custom engine part machining?
A. Send the 2D or 3D drawing, material, quantity, heat treatment, critical tolerances, surface requirements, and required inspection documents. Also identify the application, such as a machine tool, industrial engine, or fuel-powered industrial UAV.
